Retrochallenge 2016/10 - Previous version and problems

In my previous post I promised to show the previous implementation of my Z80 SD interface, and to run through the problems which I intend to fix this month.

Original Z80 SD Interface Schematic

The 74138 (U1) in the top left of the schematic is used to detect and decode IO reads and writes from the Z80. Three bits of the address bus (A7, A1, A0) are decoded along with the /RD line, M1 line and /IORQ line. With this configuration the device responds to any IO address between 0x80 and 0xff. Some more gates will be used to further decode the address later. The lower two bits (ie. the address modulo 4) select a register within the device. Address 0 selects the DATA shift register (U4) for reads or writes while address 1 selects the CONFIG register (U3) for writes only.

One NAND gate from the 7400 (U2A) quad NAND is used to invert the CONFIGWR signal, as the 74138 outputs are active low while the latch input on the 74374 is active high.

In the middle row of the schematic are the 74374 register (U3) that holds configuration information and the 74299 shift register (U4) that is used to transfer data to the SD card. To the right of these is a 74165 (U7) shift register that implements the automatic shifting mechanism for high speed mode along with some more NAND logic (U2B, U2C, U2D) to generate the appropriate signals depending on the operating mode.

The automatic shifting behaviour is implemented by latching the state of the SHIFT8 bit of the config register into all 8 bits of U7's input register when /DATAWR is asserted (ie. the data register is written to). This fills the register with 1s. The serial in (Ds) pin of the register is connected to ground so with each clock pulse the train of 1s is shifted and the gap is filled with a 0. The serial output of the register (SHIFTING) is NANDed with the clock by U2B. The output from U2B is either a train of 8 inverted clock pulses or a constant logic 1 level, depending on the state of SHIFT8 at the time the DATA register was written to. NAND gate U2C will either invert this train of clock pulses if /BITBANG is high, or reflect the inverted state of the /BITBANG config bit if U2A is outputting a constant logic 1 at the time. Put together this allows either the SHIFT8 config bit or the /BITBANG config bit to control the clock depending on the desired operating mode (relying on the driver to avoid trying to do both simultaneously).

The final NAND gate of the 7400 (U2D) is used to invert the /DATAWR signal to drive U4's S1 input to select the Parallel Load operation when /DATAWR is asserted or to Shift Left otherwise. S0 of U4 is tied to ground as the Shift Right and Hold operations are never used.

Finally, a 74107 dual JK flip flop was used to divide the RC2014's clock signal (CLK) by four to produce (Q_CLK). This was initially intended to solve a timing issue, but has caused more trouble than it was worth.

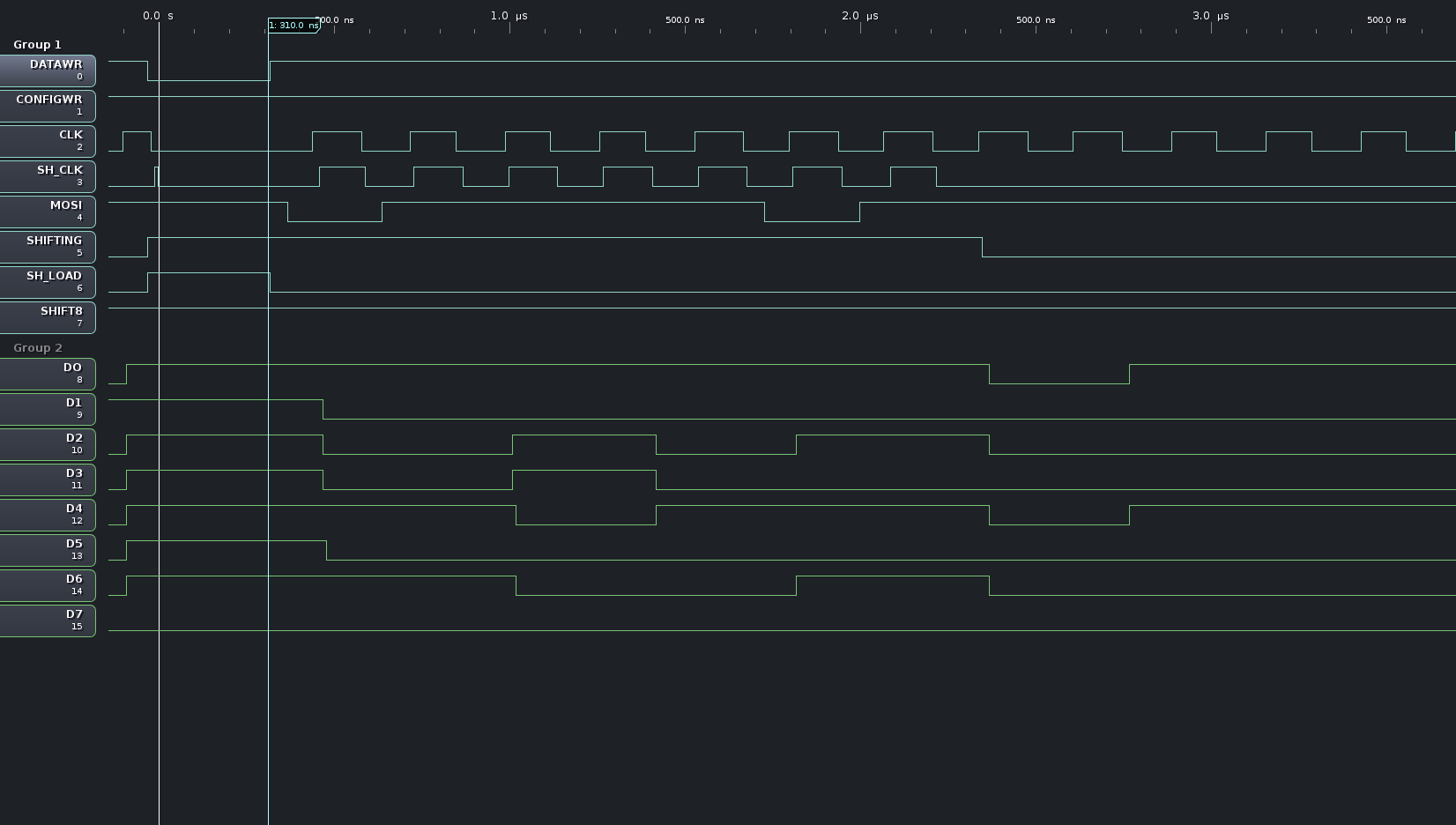

The timing diagram below shows the behaviour of the device when the SHIFT8 bit is set and a write is issued to the DATA address.

Original SD Interface Timings

A couple of issues are noticeable:

  • SH_CLK is producing one partial pulse, followed by a gap, followed by 7 real clock pulses.
  • /DATAWR (and therefore SH_LOAD) is asserted for several clock pulses.
  • CLK (actually Q_CLK) behaves strangely.

Most of these issues were introduced by attempts to work around other problems.

Before the clock divider was introduced U7 was emitting a train of 11 clock pulses rather than the expected 8. This is because the 74165 has a transparent latch rather than an edge triggered latch. The Z80 asserts /IORQ for many clock cycles so the train of 1s from SHIFT8 was being reloaded, wiping out the 0 introduced through the Ds input, until /IORQ was deasserted. Introducing and resetting the clock divider was an attempt to prevent the shift registers from being clocked during this period by holding it in the reset state when /DATAWR is asserted.

Unfortunately because the Z80 instructions take a variable number of clock cycles to complete and aren't necessarily a multiple of 4 cycles the state of the divided clock when /DATAWR is asserted is not predictable. This is likely the cause of the glitchy short pulse seen on CLK as /DATAWR is asserted.

Without this unexpected pulse U4 would not be loaded, as 74299's the Parallel Load operation is synchronous with the clock, and shares a clock with the Shift operation. Extra logic would be required to create a seperate clock that is a superset of the shift clock.

Given these problems I'm going back to the drawing board slightly. I may try adding the extra logic to clock only the 74299 but if that fails I'm replacing the 74299 with a pair of shift registers - a 74165 for data moving from the Z80 to the SD card and a 74595 for data moving from the SD card to the Z80. This is probably wise anyway as the 74299 is a rare part which is many times the cost of a 74165 or 74595 and supplies are less plentiful.

I'll also be removing the 74107 clock divider circuit and replacing it with a simple edge trigger circuit to limit the /DATAWR pulse to a single clock.

Hopefully I will have a write up of this new version soon.
